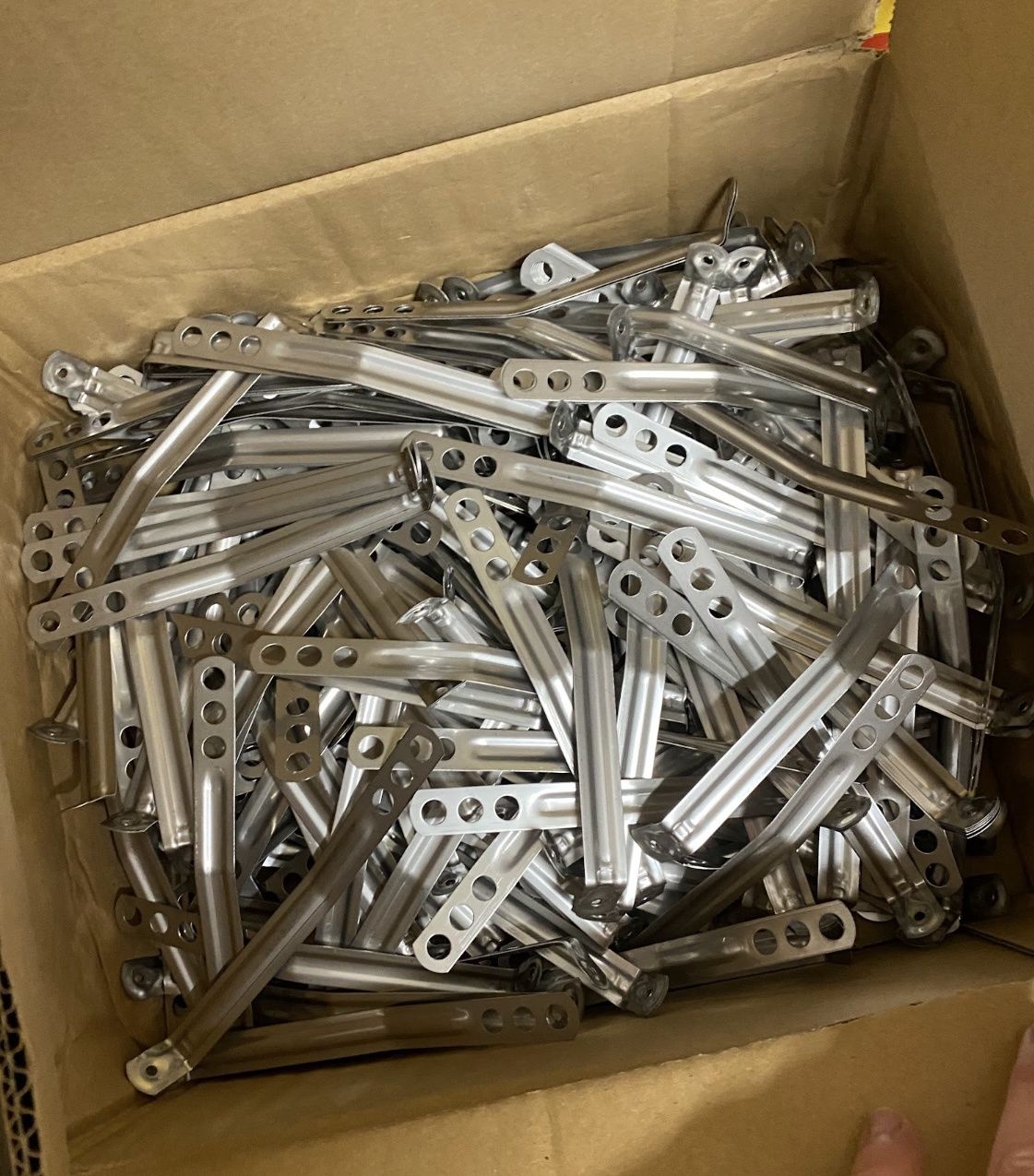

Vista V61 Timber Frame Ties 150mm (Box of 250)

250 Per Box

• Cavity Width: 75mm
• Overall Length: 150mm
• Material: A2 Stainless Steel
• Nails Supplied: 50 x 3.35mm Stainless Steel Annular Ring
• Box Qty: 250

1. Application – This type of timber frame wall tie is right for domestic and small commercial builds up to four storeys high. They are suitable for buildings with a maximum height if 15m and for flat sites where the basic wind speed is up to 25m/s and altitude is not greater than 150m above sea level.
2. Design – Masonry-timber tie for timber frame buildings that accommodates vertical movement.
3. Material – Manufactured from grade 304 stainless steel
4. Behaviour in relation to fire – non combustible (as defined in the national Building Regulations)
5. Durability – excellent corrosion resistance and a service life of not less than 60 years
6. Thermal performance – In situations where thermal losses through ties need to be taken into account, the products will adequately resist thermal transmittance through a wall cavity
7. Compliance – Tested as Type B (sound) and as Type 6 (strength) to BS EN 845-1
